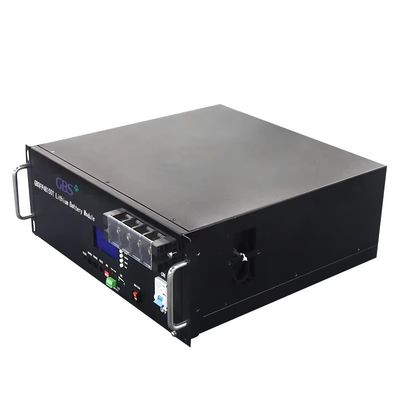

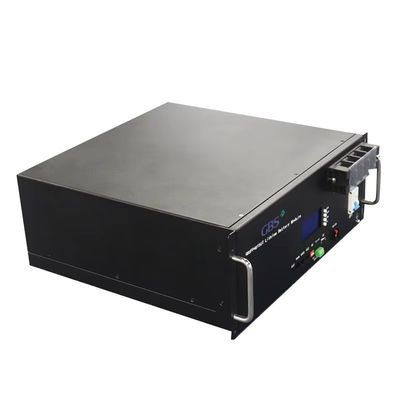

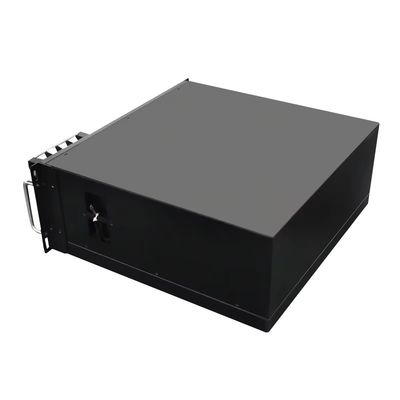

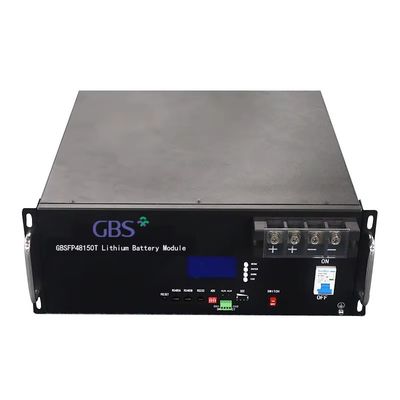

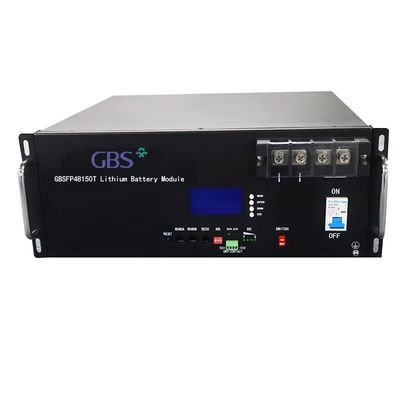

48V 51.2V 15S 16S 150Ah LFP Battery Moudle 3U 4U 5U for Telecom Base Station Lithium Ion Battery Pack

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Orzecznictwo:

CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Rodzaj ogniwa baterii:

LifePo4

Pojemność ogniw baterii:

150ah

Życie rowerowe:

3000 cykli

Kolor:

Czarny lub dostosowany

Gwarancja:

5 lat

Aplikacja:

Stacja bazowa telekomunikacji, akumulatory telekomunikacyjne

Szczegóły pakowania:

Niebezpieczne towary pakowane w drewniane pudełka

Rozmiar:

3U, 4U, 5U lub dostosowane

Szczegóły pakowania:

Niebezpieczne towary pakowane w drewniane pudełka

Możliwość Supply:

2000000 szt. Rocznie

Podkreślić:

Opis produktu

48V 51.2V 15S 16S 150Ah LFP Battery Module 3U 4U 5U for Telecom Base Station Lithium Ion Battery Pack

Product Overview

Key Features

High efficiency output: Standard discharge current 0.3C-0.8C, instant impulse discharge current 10C for 10 seconds
High temperature performance: Operates reliably at up to 65°C with safe battery structure
Low temperature performance: Maintains over 78% discharge capacity at 0°C and over 70% at -20°C
Advanced safety: One-way safety valve prevents burning/explosion by releasing excess gas and heat
Extended cycle life: Maintains over 80% discharge capacity after 2000 cycles at 80% DOD
Fast charging: 80% charge in 20 minutes, full charge in 2-3 hours
Cost-effective: Low maintenance requirements with excellent ROI
Eco-friendly: No pollution during manufacture or usage

Installation & Usage Guidelines

Verify all components upon unpacking and review operation manual carefully
Avoid short circuits, overcharging, and over-discharging
For first use, fully charge before initial discharge
Do not remove factory-installed plates and strips
Standard voltage range: 12.8V-13.2V (verify before installation)
Always use the included Battery Management System (BMS)
Battery connectors use rivets or screws for secure attachment
Use copper components for inter-battery connections with hydraulic pressure pliers
Only use company-approved chargers designed specifically for these batteries

Failure to follow these guidelines may void warranty coverage and reduce battery lifespan

Safety Assurance Requirements

For optimal safety and performance, please consult with our technical team regarding:
